React 源码阅读（v18.2.0）

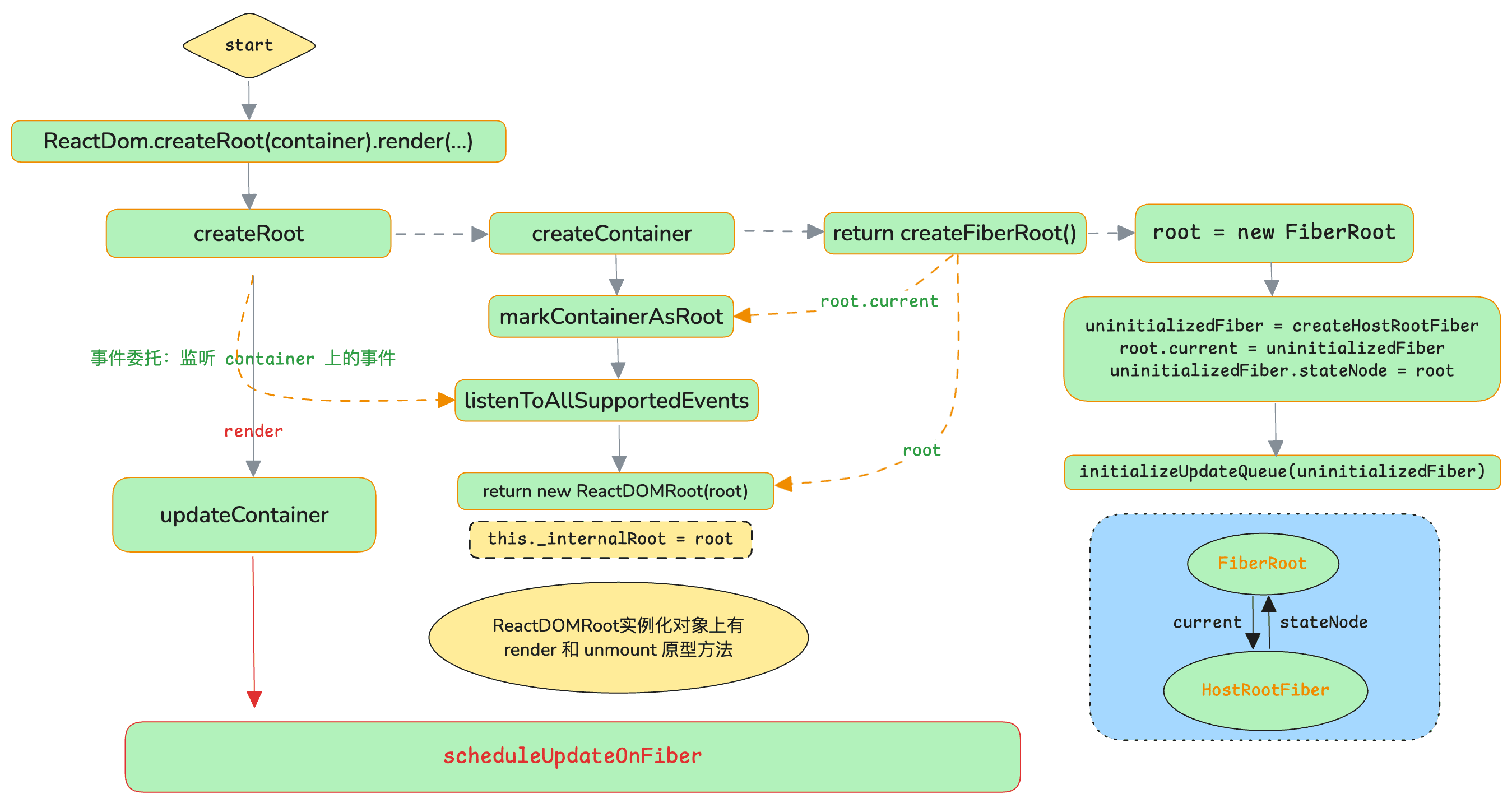

export function scheduleUpdateOnFiber(
  root: FiberRoot,
  fiber: Fiber,
  lane: Lane,
  eventTime: number,
) {
  // 把更新的 lane 和 eventTime 挂载到 fiberRoot 对应的属性上pendingLanes和eventTimes
  // Mark that the root has a pending update.
  markRootUpdated(root, lane, eventTime);

  // 字面翻译：执行上下文包含渲染上下文，并且 workInProgressRoot 为当前 FiberRoot
  // 个人理解: 这里的逻辑就是处理渲染过程中的更新
  if ((executionContext & RenderContext) !== NoLanes && root === workInProgressRoot) {
    // 追踪渲染阶段的 lane
    // Track lanes that were updated during the render phase.
    workInProgressRootRenderPhaseUpdatedLanes = mergeLanes(
      workInProgressRootRenderPhaseUpdatedLanes,
      lane,
    );
  } else {
    if (root === workInProgressRoot) {
      if (workInProgressRootExitStatus === RootSuspendedWithDelay) {
        markRootSuspended(root, workInProgressRootRenderLanes);
      }
    }
    // ...
    /**

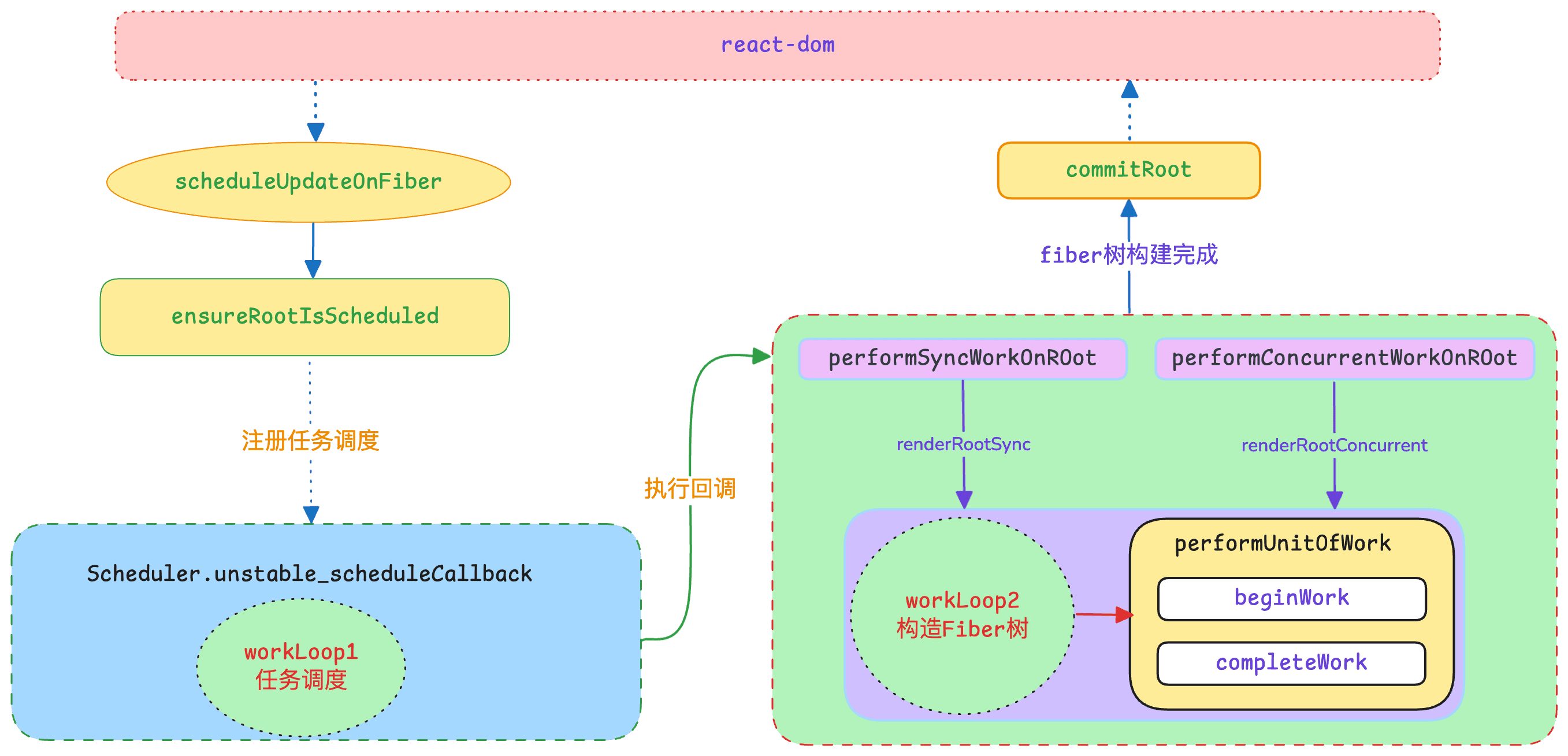

     * 重点：reconciler 与 scheduler 交互的入口。这个方法的作用是去调度中心注册任务，等待回调执行
     */
    ensureRootIsScheduled(root, eventTime);
    // ...
  }
}

function ensureRootIsScheduled(root: FiberRoot, currentTime: number) {
  // FiberRoot.callbackNode 的是由 Scheduler.scheduleCallback 返回的 Node，代表着下一次将要执行的渲染任务
  const existingCallbackNode = root.callbackNode;

  // 被其他高优先级工作“饿死”的 lane 进行标记，以便在下次调度时优先处理这些 lane
  markStarvedLanesAsExpired(root, currentTime);

  // Determine the next lanes to work on, and their priority.
  const nextLanes = getNextLanes(
    root,
    root === workInProgressRoot ? workInProgressRootRenderLanes : NoLanes,
  );

  // ...

  // 取出 nextLanes 中的最高优先级（lanes & -lanes）
  const newCallbackPriority = getHighestPriorityLane(nextLanes);

  // fiberRoot 上的回调优先级如果和新的最高优先级相同，直接复用
  const existingCallbackPriority = root.callbackPriority;
  if (existingCallbackPriority === newCallbackPriority) {
    return;
  }

  // 优先级不同且回调节点存在，则取消该回调，并且后续 schedule 一个新的回调任务
  if (existingCallbackNode != null) {
    cancelCallback(existingCallbackNode);
  }

  // Schedule a new callback.
  let newCallbackNode;
  // 本地调度优先级最高的lane 是 SyncLne，则走「同步调度」，否则走 「异步调度」
  if (newCallbackPriority === SyncLane) {
    // 调用 scheduleSyncCallback，把 performSyncWorkOnRoot.bind(null, root) 回调函数装载到 syncQueue 队列中
    // 支持微任务就 flushSyncCallbacks 把 syncQueue 中的回调执行完，否则调用 scheduleCallback(ImmediatePriority, flushSyncCallbacks)
    // 赋予 ImmediateSchedulerPriority 即立即调度的优先级
  } else {
    // 非同步下，要将 lanes 转化为调度的优先级
    let schedulerPriorityLevel;
    switch (lanesToEventPriority(nextLanes)) {
      case DiscreteEventPriority:
        schedulerPriorityLevel = ImmediateSchedulerPriority;
        break;
      case ContinuousEventPriority:
        schedulerPriorityLevel = UserBlockingSchedulerPriority;
        break;
      case DefaultEventPriority:
        schedulerPriorityLevel = NormalSchedulerPriority;
        break;
      case IdleEventPriority:
        schedulerPriorityLevel = IdleSchedulerPriority;
        break;
      default:
        schedulerPriorityLevel = NormalSchedulerPriority;
        break;
    }
    newCallbackNode = scheduleCallback(
      schedulerPriorityLevel,
      performConcurrentWorkOnRoot.bind(null, root),
    );
  }
  // 挂载新的回调优先级和回调节点到 fiberRoot 上
  root.callbackPriority = newCallbackPriority;
  root.callbackNode = newCallbackNode;
}

function performSyncWorkOnRoot(root) {
  // ...部分代码省略

  // 处理 passive effect（即触发 useEffect 的创建、销毁函数及其他同步任务）
  flushPassiveEffects();

  let lanes = getNextLanes(root, NoLanes);
  // 如果没有需要处理的任务，直接返回
  if (!includesSomeLane(lanes, SyncLane)) {
    ensureRootIsScheduled(root, now());
    return null;
  }

  // 构建 fiber 树
  let exitStatus = renderRootSync(root, lanes);

  // ...根据 exitStatus 做一些异常处理代码省略

  // 渲染 fiber 树
  const finishedWork: Fiber = (root.current.alternate: any);
  root.finishedWork = finishedWork;
  root.finishedLanes = lanes;

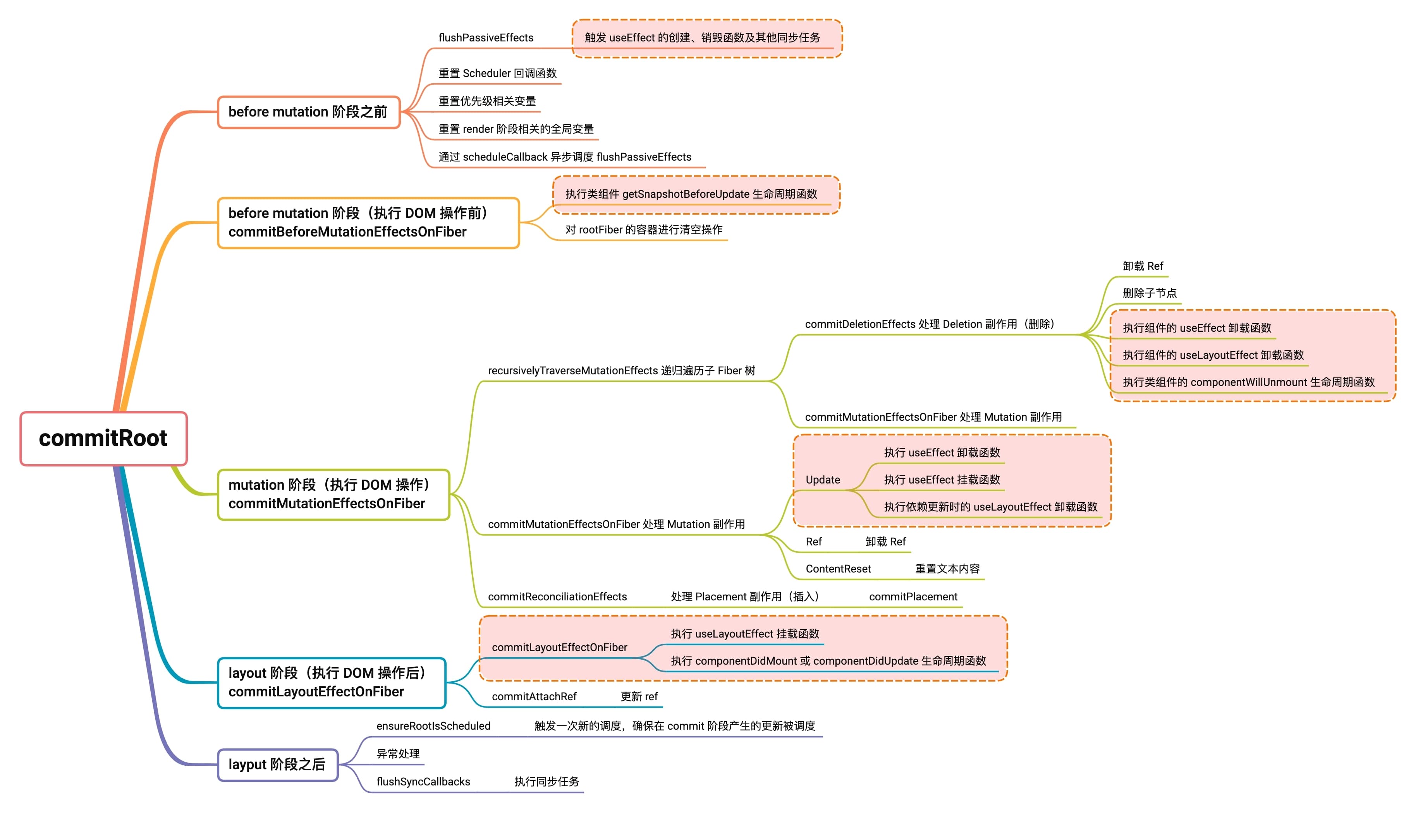

  // 进入 commit 阶段
  commitRoot(
    root,
    workInProgressRootRecoverableErrors,
    workInProgressTransitions,
  );

  // 退出前再次检测是否有其他更新
  ensureRootIsScheduled(root, now());

  return null;
}

function performConcurrentWorkOnRoot(root, didTimeout) {
  // ...部分代码省略
  // 当前在 React 事件中可以清除当前事件时间，下一次更新将计算新的事件时间
  currentEventTime = NoTimestamp;
  currentEventTransitionLane = NoLanes;

  const originalCallbackNode = root.callbackNode;
  // 处理 passive effect（即触发 useEffect 的创建、销毁函数及其他同步任务）
  const didFlushPassiveEffects = flushPassiveEffects();
  if (didFlushPassiveEffects) {
    if (root.callbackNode !== originalCallbackNode) {
      return null;
    } else {
      // Current task was not canceled. Continue.
    }
  }

  // 获取下一个要处理的 lanes
  let lanes = getNextLanes(
    root,
    root === workInProgressRoot ? workInProgressRootRenderLanes : NoLanes,
  );
  // 永远不会执行
  if (lanes === NoLanes) {
    return null;
  }

  // 是否开启时间分片
  const shouldTimeSlice =
    !includesBlockingLane(root, lanes) &&
    !includesExpiredLane(root, lanes) &&
    (disableSchedulerTimeoutInWorkLoop || !didTimeout);

  // 构建 fiber 树
  let exitStatus = shouldTimeSlice
    ? renderRootConcurrent(root, lanes)
    : renderRootSync(root, lanes);

  // 检查退出状态
  if (exitStatus !== RootInProgress) {
    // ...根据 exitStatus 做一些异常处理代码省略

    // 渲染未完成 挂起
    if (exitStatus === RootDidNotComplete) {
      markRootSuspended(root, lanes);
    } else {
      // 渲染完成
      const renderWasConcurrent = !includesBlockingLane(root, lanes);
      const finishedWork: Fiber = (root.current.alternate: any);
      if (
        renderWasConcurrent &&
        !isRenderConsistentWithExternalStores(finishedWork) // 判断 store 是否一致
      ) {
        // A store was mutated in an interleaved event. Render again,
        // synchronously, to block further mutations.
        exitStatus = renderRootSync(root, lanes);
        // ...根据 exitStatus 做一些异常处理代码省略
      }

      // We now have a consistent tree. The next step is either to commit it,
      // or, if something suspended, wait to commit it after a timeout.
      root.finishedWork = finishedWork;
      root.finishedLanes = lanes;

      // 完成并发渲染的后续处理（即进入 commit 阶段）
      finishConcurrentRender(root, exitStatus, lanes);
    }
  }

  // 退出前再次检测是否有其他更新
  ensureRootIsScheduled(root, now());

  // * 判断 callbackNode 是否和缓存值一致，来确定是否是被打断的任务
  if (root.callbackNode === originalCallbackNode) {
    // * 渲染被打断，返回一个新的 performConcurrentWorkOnRoot 等待下一次调度
    // * 即 Scheduler  workLoop 中 task.callback 执行完返回的 continuationCallback
    return performConcurrentWorkOnRoot.bind(null, root);
  }
  return null;
}

function renderRootSync(root: FiberRoot, lanes: Lanes) {
  // 保存当前执行上下文
  const prevExecutionContext = executionContext
  // 设置当前执行上下文为 render 上下文
  executionContext |= RenderContext
  const prevDispatcher = pushDispatcher()

  // 判断是否需要创建新的 workInProgressRoot 树
  if (workInProgressRoot !== root || workInProgressRootRenderLanes !== lanes) {
    // ... 部分代码省略
    // 创建 workInProgressRoot 树
    prepareFreshStack(root, lanes)
  }

  if (enableSchedulingProfiler) {
    markRenderStarted(lanes)
  }

  /**
   * 循环条件为 true
   * 只有正常执行完 workLoopSync 才会 break
   * 如果 workLoopSync 抛出异常，会被 handleError 捕获，然后继续循环，直到正常执行完毕
   */
  do {
    try {
      workLoopSync()
      break
    } catch (thrownValue) {
      handleError(root, thrownValue)
    }
  } while (true)

  resetContextDependencies()

  // 将执行上下文修改为之前的上下文
  executionContext = prevExecutionContext
  popDispatcher(prevDispatcher)

  // 设置 workInProgressRoot 为 null，表示没有正在进行的渲染
  workInProgressRoot = null
  workInProgressRootRenderLanes = NoLanes

  return workInProgressRootExitStatus
}

function renderRootConcurrent(root: FiberRoot, lanes: Lanes) {
  const prevExecutionContext = executionContext
  executionContext |= RenderContext
  const prevDispatcher = pushDispatcher()

  // 判断是否需要创建新的 workInProgressRoot 树
  if (workInProgressRoot !== root || workInProgressRootRenderLanes !== lanes) {

    resetRenderTimer()
    prepareFreshStack(root, lanes)
  }

  if (enableSchedulingProfiler) {
    markRenderStarted(lanes)
  }

  /**
   * 循环条件为 true
   * 只有正常执行完 workLoopConcurrent 才会 break
   * 如果 workLoopConcurrent 抛出异常，会被 handleError 捕获，然后继续循环，直到正常执行完毕
   */
  do {
    try {
      workLoopConcurrent()
      break
    } catch (thrownValue) {
      handleError(root, thrownValue)
    }
  } while (true)

  resetContextDependencies()

  popDispatcher(prevDispatcher)
  executionContext = prevExecutionContext

  // Check if the tree has completed.
  if (workInProgress !== null) {
    // Still work remaining.
    if (enableSchedulingProfiler) {
      markRenderYielded()
    }
    return RootInProgress
  } else {
    // Completed the tree.
    if (enableSchedulingProfiler) {
      markRenderStopped()
    }

    // Set this to null to indicate there's no in-progress render.
    workInProgressRoot = null
    workInProgressRootRenderLanes = NoLanes

    // Return the final exit status.
    return workInProgressRootExitStatus
  }
}

function workLoopSync() {
  // Already timed out, so perform work without checking if we need to yield.
  while (workInProgress !== null) {
    performUnitOfWork(workInProgress);
  }
}
function workLoopConcurrent() {
  // Perform work until Scheduler asks us to yield
  while (workInProgress !== null && !shouldYield()) {
    performUnitOfWork(workInProgress);
  }
}

function performUnitOfWork(unitOfWork: Fiber): void {
  // unitOfWork 即传入的 workInProgress
  const current = unitOfWork.alternate // 双缓冲架构

  let next
  // ... 部分代码省略
  // 调用 beginWork 函数，进入 “递” 阶段
  next = beginWork(current, unitOfWork, subtreeRenderLanes)

  // 收集 props
  unitOfWork.memoizedProps = unitOfWork.pendingProps

  // 当 next 为 null 时，表示当前 workInProgress 没有子节点
  if (next === null) {
    // 调用 completeUnitOfWork 函数，进入 “归” 阶段
    completeUnitOfWork(unitOfWork)
  } else {
    // 更新 workInProgress 指针为 next （即子 Fiber 节点）
    workInProgress = next
  }

  ReactCurrentOwner.current = null
}

// 省略部分无关代码

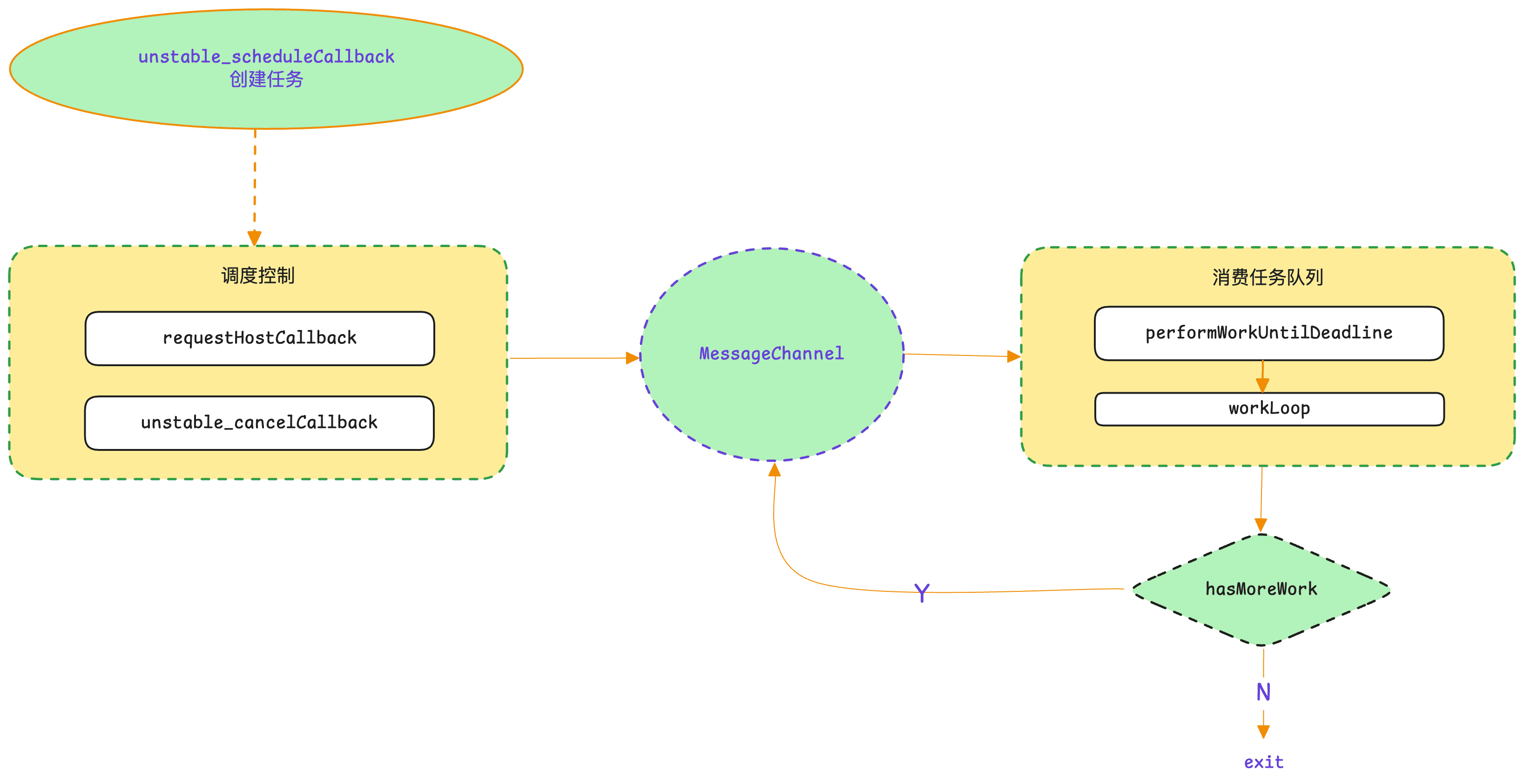

function unstable_scheduleCallback(priorityLevel, callback, options) {
  var currentTime = getCurrentTime();

  var startTime;
  if (typeof options === 'object' && options !== null) {
    // 通过 options 设置延迟
  } else {
    startTime = currentTime;
  }

  // 根据优先级，设置过期时间
  var timeout;
  switch (priorityLevel) {
    case ImmediatePriority:
      timeout = IMMEDIATE_PRIORITY_TIMEOUT;
      break;
    case UserBlockingPriority:
      timeout = USER_BLOCKING_PRIORITY_TIMEOUT;
      break;
    case IdlePriority:
      timeout = IDLE_PRIORITY_TIMEOUT;
      break;
    case LowPriority:
      timeout = LOW_PRIORITY_TIMEOUT;
      break;
    case NormalPriority:
    default:
      timeout = NORMAL_PRIORITY_TIMEOUT;
      break;
  }

  var expirationTime = startTime + timeout;

  // 创建新任务
  var newTask = {
    id: taskIdCounter++,
    callback,
    priorityLevel,
    startTime,
    expirationTime,
    sortIndex: -1,
  };

  if (startTime > currentTime) {
    // 省略，延迟 task，放入 timerQueue
  } else {
    newTask.sortIndex = expirationTime;
    push(taskQueue, newTask);
    if (enableProfiling) {
      markTaskStart(newTask, currentTime);
      newTask.isQueued = true;
    }
    // Schedule a host callback, if needed. If we're already performing work,
    // wait until the next time we yield.
    if (!isHostCallbackScheduled && !isPerformingWork) {
      isHostCallbackScheduled = true;
      requestHostCallback(flushWork);
    }
  }

  return newTask;
}

function requestHostCallback(callback) {
  scheduledHostCallback = callback;
  if (!isMessageLoopRunning) {
    isMessageLoopRunning = true;
    // 根据环境和兼容性分别使用 setImmediate/MessageChannel/setTimeout 发送消息
    schedulePerformWorkUntilDeadline();
  }
}

const performWorkUntilDeadline = () => {
  // scheduledHostCallback 是在 requestHostCallback 缓存的 flushWork 消费任务函数
  if (scheduledHostCallback !== null) {
    const currentTime = getCurrentTime();
    // Keep track of the start time so we can measure how long the main thread
    // has been blocked.
    startTime = currentTime;
    const hasTimeRemaining = true;

    let hasMoreWork = true;
    try {
      hasMoreWork = scheduledHostCallback(hasTimeRemaining, currentTime); // flushWork 被打断时会返回 true
    } finally {
      if (hasMoreWork) {
        // If there's more work, schedule the next message event at the end
        // of the preceding one.
        schedulePerformWorkUntilDeadline();
      } else {
        isMessageLoopRunning = false;
        scheduledHostCallback = null;
      }
    }
  } else {
    isMessageLoopRunning = false;
  }
  // Yielding to the browser will give it a chance to paint, so we can
  // reset this.
  needsPaint = false;
};

// 省略部分代码
function flushWork(hasTimeRemaining, initialTime) {
  // 做好全局标记, 表示现在已经进入调度阶段
  isHostCallbackScheduled = false;
  isPerformingWork = true;
  const previousPriorityLevel = currentPriorityLevel;
  try {
    return workLoop(hasTimeRemaining, initialTime);
  } finally {
    currentTask = null;
    currentPriorityLevel = previousPriorityLevel;
    isPerformingWork = false;
  }
}

function workLoop(hasTimeRemaining, initialTime) {
  let currentTime = initialTime; // 保存当前时间，用于判断是否过期
  advanceTimers(currentTime); // 检查 timerQueue，把不再延迟的任务加入到 taskQueue 中
  currentTask = peek(taskQueue); // 从小顶堆中获取堆顶任务（最优先的）

  while (currentTask !== null) {
    if (
      currentTask.expirationTime > currentTime &&
      (!hasTimeRemaining || shouldYieldToHost())
    ) {
      // currentTask没有过期, 但是执行时间超过了限制(毕竟只有5ms, shouldYieldToHost()返回true). 停止继续执行, 让出主线程
      // This currentTask hasn't expired, and we've reached the deadline.
      break;
    }
    const callback = currentTask.callback; // 任务的回调，对应 performConcurrentWorkOnRoot
    if (typeof callback === 'function') {
      currentTask.callback = null;
      currentPriorityLevel = currentTask.priorityLevel;
      const didUserCallbackTimeout = currentTask.expirationTime <= currentTime;
      // 执行回调
      const continuationCallback = callback(didUserCallbackTimeout);
      currentTime = getCurrentTime();
      // 判断是否还有派生回调
      if (typeof continuationCallback === 'function') {
        // 产生了连续回调(如fiber树太大, 出现了中断渲染), currentTask和派生回调仍然保留着
        currentTask.callback = continuationCallback;
      } else {
        if (currentTask === peek(taskQueue)) {
          pop(taskQueue);
        }
      }
      advanceTimers(currentTime); // 再次检查 timerQueue 是否有任务到达执行时间
    } else {
      // 如果任务被取消(这时currentTask.callback = null), 将其移出队列
      pop(taskQueue);
    }
    currentTask = peek(taskQueue); // 继续取出下一个任务
  }
  // Return whether there's additional work
  if (currentTask !== null) {
    return true; // 任务执行完返回 true， 等待调度中心下一次调度
  } else {
    // taskQueue 执行完毕，请求 timerQueue
    const firstTimer = peek(timerQueue);
    if (firstTimer !== null) {
      requestHostTimeout(handleTimeout, firstTimer.startTime - currentTime);
    }
    return false;
  }
}
